UBio-X Slim
เครื่องสแกนลายนิ้วมือ
Premium Fingerprint & Card Recognition Terminal
Elegance and Sleek Premium Design
Card & Fingerprint Recognition Terminal
The Best Performance in the World
The UBio-X Slim is equipped with high-performance Quad Core CPU, 1.4GHz, 2GB RAM & 8GB of flash memory. Implementing an accurate fingerprint authentication and fast authentication processing. Accurate image extraction performance in less than a second is another strong point of our UBio-X Slim.
Matching Speed
200,000 Templates in 1Second
คุณสมบัติ
Large Memory Capacity
UBio-X Slim offers large memory capacity to store up to 500,000 users, 10,000,000 event logs as well as 50,000 image logs. Additionally, various videos for the screen saver function can be used.
Premium Design
UBio-X Slim 5” color TFT LCD screen provides wide viewing angles with a special reinforced glass screen.
It’s slim and elegant premium design matches beautifully with any environment.
Support Multi Card Technology
UBio-X Slim features 125KHz and 13.56MHz standard smart card support.
Enhanced Live Fake Fingerprint Detection
UBio-X Slim, with our Live Fingerprint Detection(LFD) technology, contains the know-how and technical skills of UNIONCOMMUNITY. UBio-X Slim provides high security uncomparable with any current fingerprint recognition terminal.

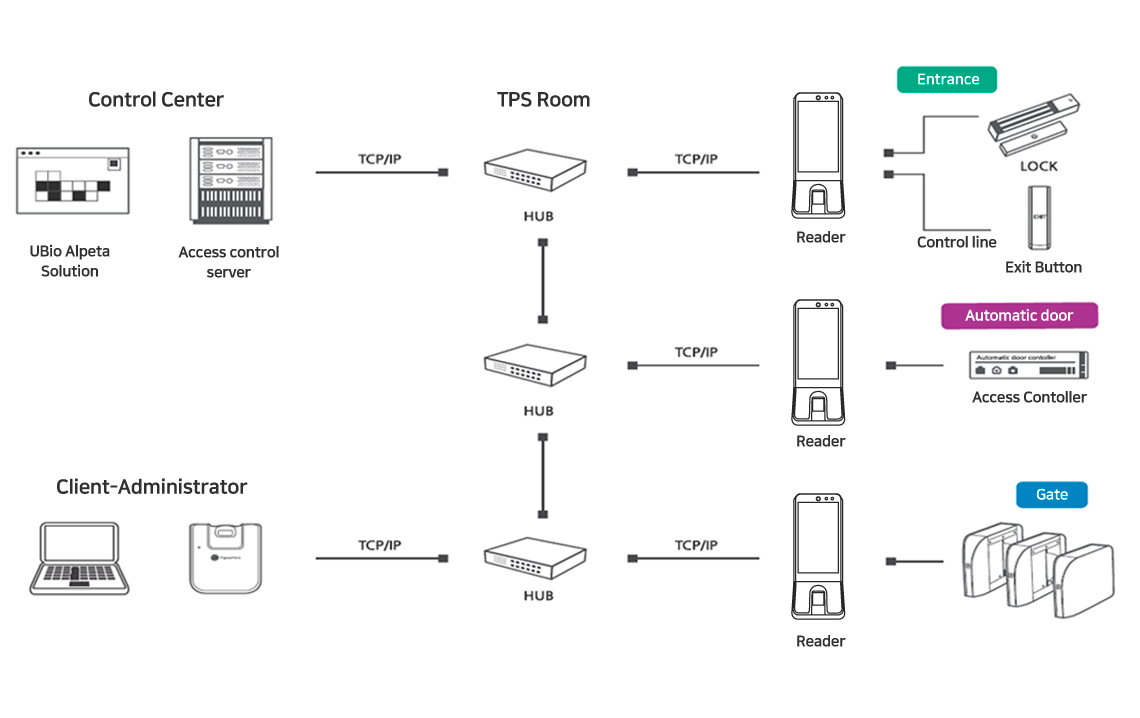

การคอนฟิคระบบ
รายละเอียด
| Model Name | UBio-X Slim | |||
|---|---|---|---|---|
| Authentication Method | Fingerprint/Card | |||
| Dust/Water Resistance | X | |||
| Memory | Max Users | card | (1:1) / (1:N) | 500,000 |
| Fingerprint (Base on one finger enrollment per user) |
1:1 | 100,000 | ||
| 1:N | 100,000 | |||
| Templates | Fingerprint | (1:1) | 200,000 | |
| (1:N) | 200,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Logs | 10,000,000 | |||
| Images | 50,000 | |||
| Communication | with server | TCP/IP | ||
| Other | USB | |||
| Wireless LAN(Wi-Fi) | Optional | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | O | |||
| Wiegand IN | O | |||
| Display | LCD | 5"Color Touch | ||
| Backlight | O | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Embedded Camera | O | |||
| Keypad | Touch Screen | |||
| Function keys | SOFT | |||
| Door Phone | X | |||
| FP Sensor (Platen Area) | 16.4 X 19.4 mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 80 x 195.6 x 23.5 (Upper) / 54.67(Lower) | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Illuminance (lux) | X | |||
| Operating Temperature | -20 ~ 60℃ | |||
| Opertating Software (Server solution) | UNIS 4.5, UBio Alpeta | |||
