AC-5000 IK
เครื่องสแกนลายนิ้วมือ
(Outdoor Fingerprint Recognition Terminal)
AC5000 IK is an outdoor fingerprint recognition terminal with a Vandal proof structure rated IK09.
VirDI AC-5000 IK Outdoor Fingerprint Recognition Terminal
ViRDI’s AC-5000 IK is an IP65 protection rated fingerprint terminal which features POE connectivity and all-weather usability. The terminal supports multi-frequency card reading and both card and biometric credentials.
คุณสมบัติ
IK09 Vandal-proof Structure
Equipped with a vandal-resistant housing, able to withstand a high level of impact.

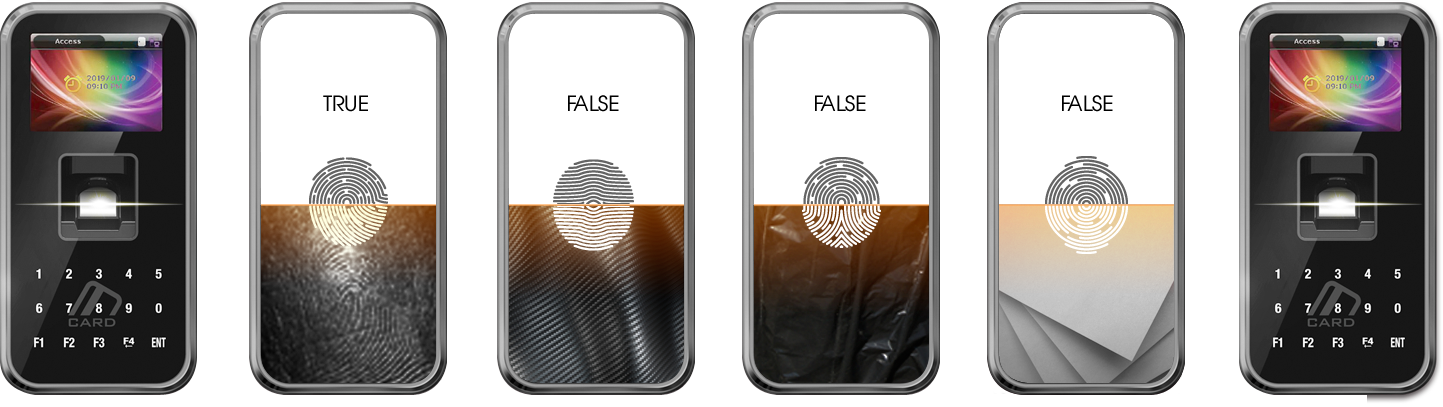

Live Finger Detection Technology
With our Live Finger Detection Technology,
It can distinguish fake fingerprint made from various materials
including gelatin, rubber, silicone, paper and more.
Live Finger Detection Technology
With our Live Finger Detection technology, it can distinguish fake fingerprint made from various materials including gelatin, rubber, silicone, glue, paper film and more.
Support Multi Card Technology
AC-5000 features various multi-smart card support.
Various Applications
AC-5000 IK can be used in various applications and environment such as construction sites, warehouse, prison and more.
Construction sites
Military unit
Warehouse
Prison
รายละเอียด
| Model Name | AC-5000 IK | |||
|---|---|---|---|---|
| Authentication Method | Fingerprint/Card | |||
| Dust/Water Resistance | IP65/IK09 | |||
| Memory | Max Users | card | (1:1) / (1:N) | 20,000 |
| Fingerprint (Base on one finger enrollment per user) |
1:1 | 20,000 | ||
| 1:N | 15,000 | |||
| Templates | Fingerprint | (1:1) | 40,000 | |
| (1:N) | 30,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Logs | 64,000 | |||
| Images | X | |||
| Communication | with server | TCP/IP | ||
| Other | X | |||
| Wireless LAN(Wi-Fi) | X | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | OSDP | |||
| Wiegand IN | O | |||
| Display | LCD | 2.8″Color | ||
| Backlight | O | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Embedded Camera | X | |||
| Keypad | O | |||
| Function keys | 10 | |||
| Door Phone | X | |||
| FP Sensor (Platen Area) | 16 X 20 mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 88 X 175 X 43.5 | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Temperature | -20 ~ 60℃ | |||
| Opertating Software (Server solution) | UNIS | |||
