AC-5100
เครื่องสแกนลายนิ้วมือ
( Fingerprint / Card Terminal with
Camera & Bluetooth Mobile Key)
AC-5100 is a premium fingerprint terminal with supports mobile key and a built-in camerafor pictures.

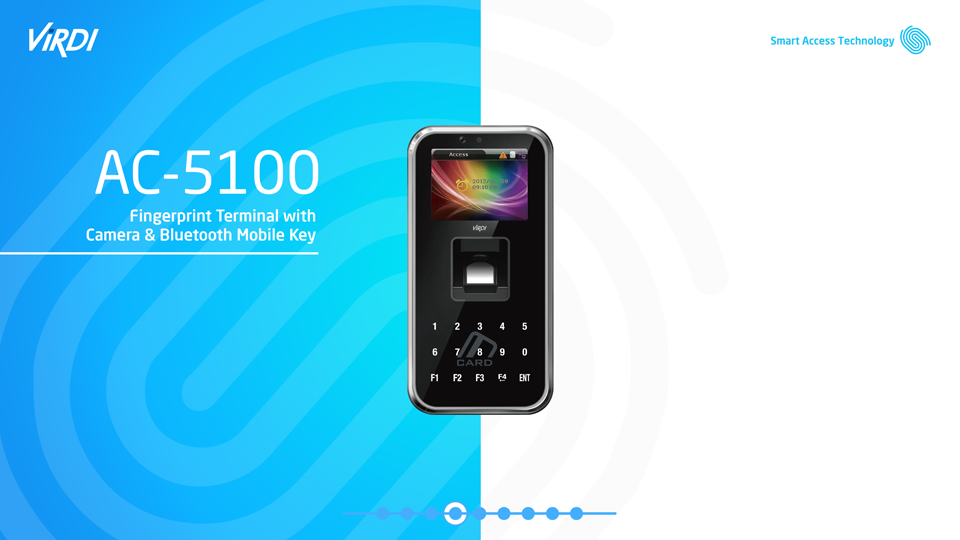

ViRDI AC-5100 Fingerprint Recognition Terminal
(Bluetooth enabled, outdoor application)
ViRDI’s AC-5100 is a high-performance biometric terminal offering dual-frequency card reading and live & fake finger detection fingerprint scanner. The AC-5100 terminal is suitable for outdoor application and provides secure access control and can store up to 20,000 users and allows the use of mobile credentials via bluetooth connectivity.
คุณสมบัติ
High Performance
Equipped with a powerful CPU and latest fingerprint recognition algorithm.
Live Finger Detection Technology
With our Live Finger Detection Technology,
It can distinguish fake fingerprint made from various materials
including gelatin, rubber, silicone, paper and more.

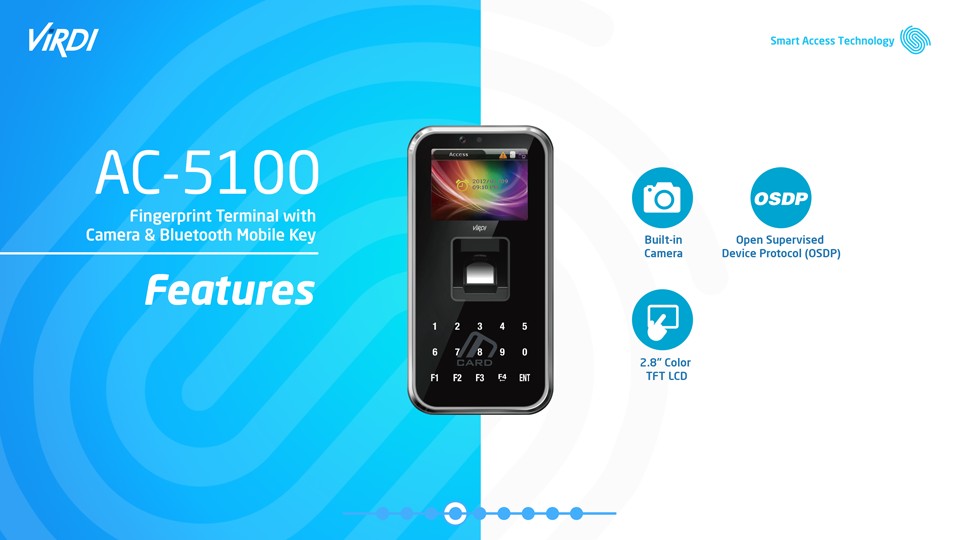

2.8inch Color LCD Screen & Camera
With its 2.8” Color LCD Screen it provides the user, wide and easy to use GUI.
Equipped with a high definition camera to provide for storing image logs as soon authenticate.

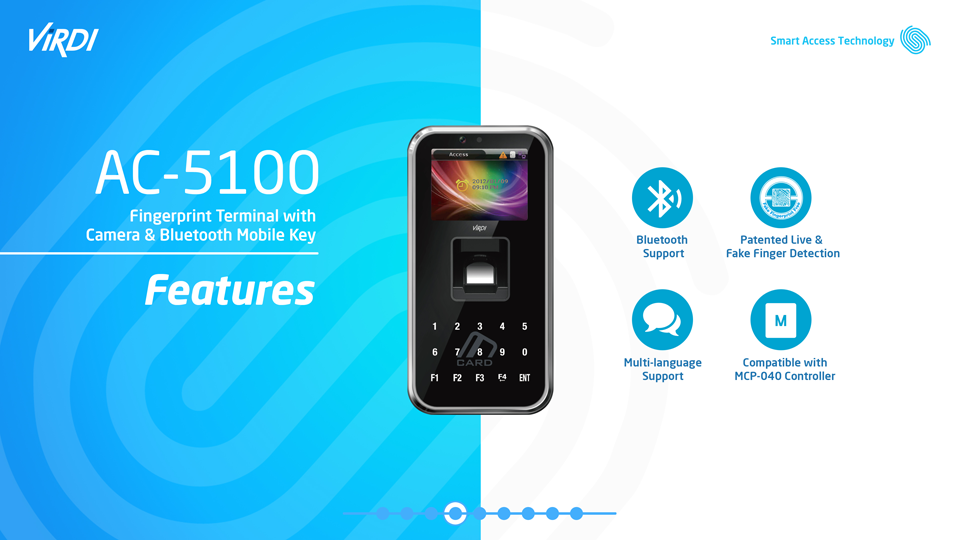

Various Additional Functions
It can use mobile card via Bluetooth function and provide various functions such as multi language support and more.
รายละเอียด
| Model Name | AC-5100 | |||
|---|---|---|---|---|
| Authentication Method | Fingerprint/Card | |||
| Dust/Water Resistance | X | |||
| Memory | Max Users | card | (1:1) / (1:N) | 20,000 |
| Fingerprint (Base on one finger enrollment per user) |
1:1 | 20,000 | ||
| 1:N | 15,000 | |||
| Templates | Fingerprint | (1:1) | 40,000 | |
| (1:N) | 30,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Logs | 64,000 | |||
| Images | 17,000 | |||
| Communication | with server | TCP/IP | ||
| Other | Bluetooth | |||
| Wireless LAN(Wi-Fi) | X | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | OSDP | |||
| Wiegand IN | O | |||
| Display | LCD | 2.8″Color | ||
| Backlight | O | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Embedded Camera | O | |||
| Keypad | O | |||
| Function keys | 10 | |||
| Door Phone | X | |||
| FP Sensor (Platen Area) | 16 X 20 mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 88 X 175 X 43.5 | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Temperature | -20 ~ 60℃ | |||
| Opertating Software (Server solution) | UNIS | |||
ดาวน์โหลด
-
29
2562.05
โบรชัวร์AC-5100 Brochure EN235 KB -
02
2559.06
คู่มือAC-5000, AC-5100 UG V2.07 EN2.99 MB
