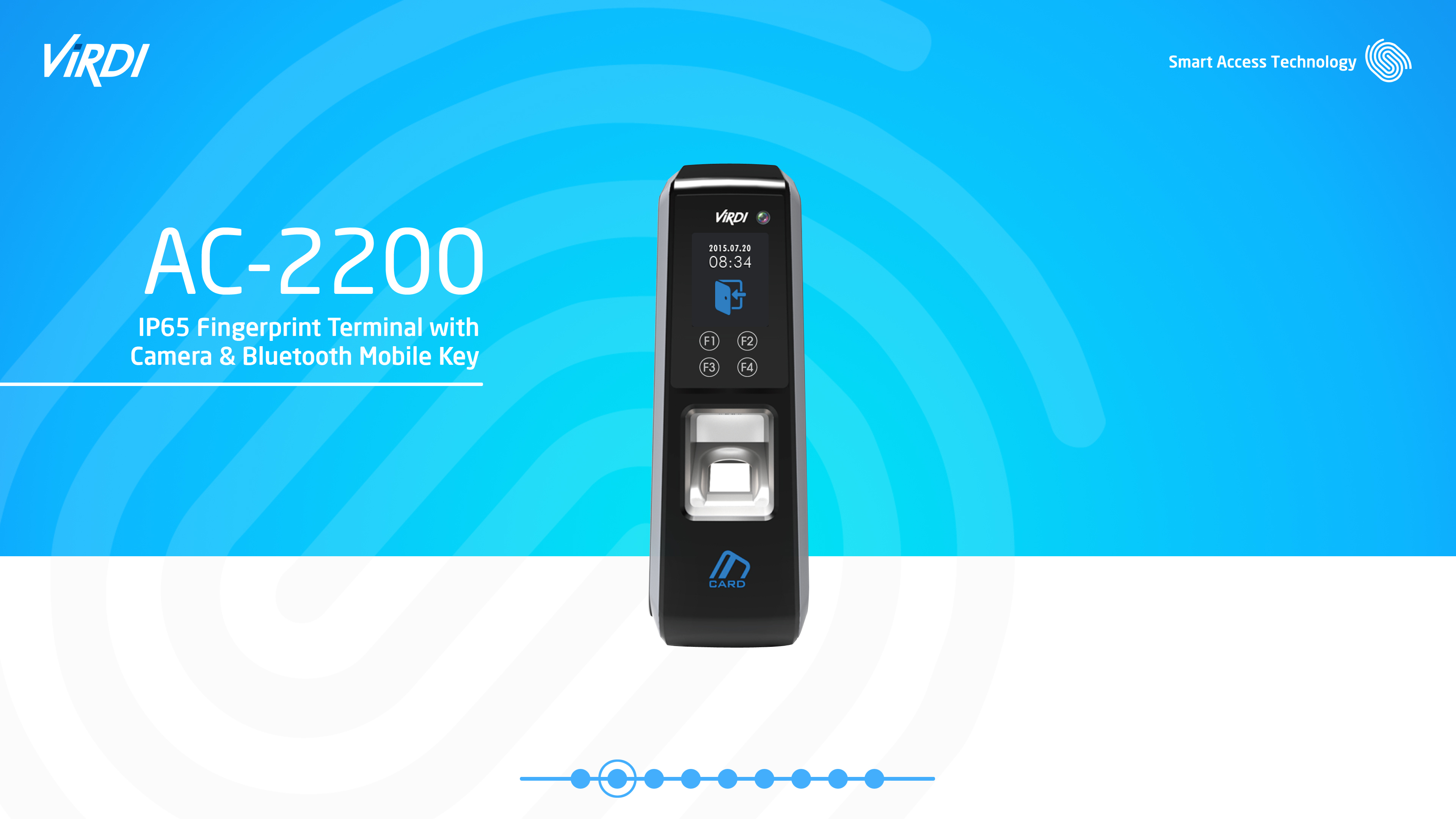

AC-2200
เครื่องสแกนลายนิ้วมือ
(Outdoor Fingerprint Recognition Terminal)
AC-2200 is a Premium outdoor fingerprint recognition terminal with IP65 Dust & Waterproof and supporting Bluetooth.

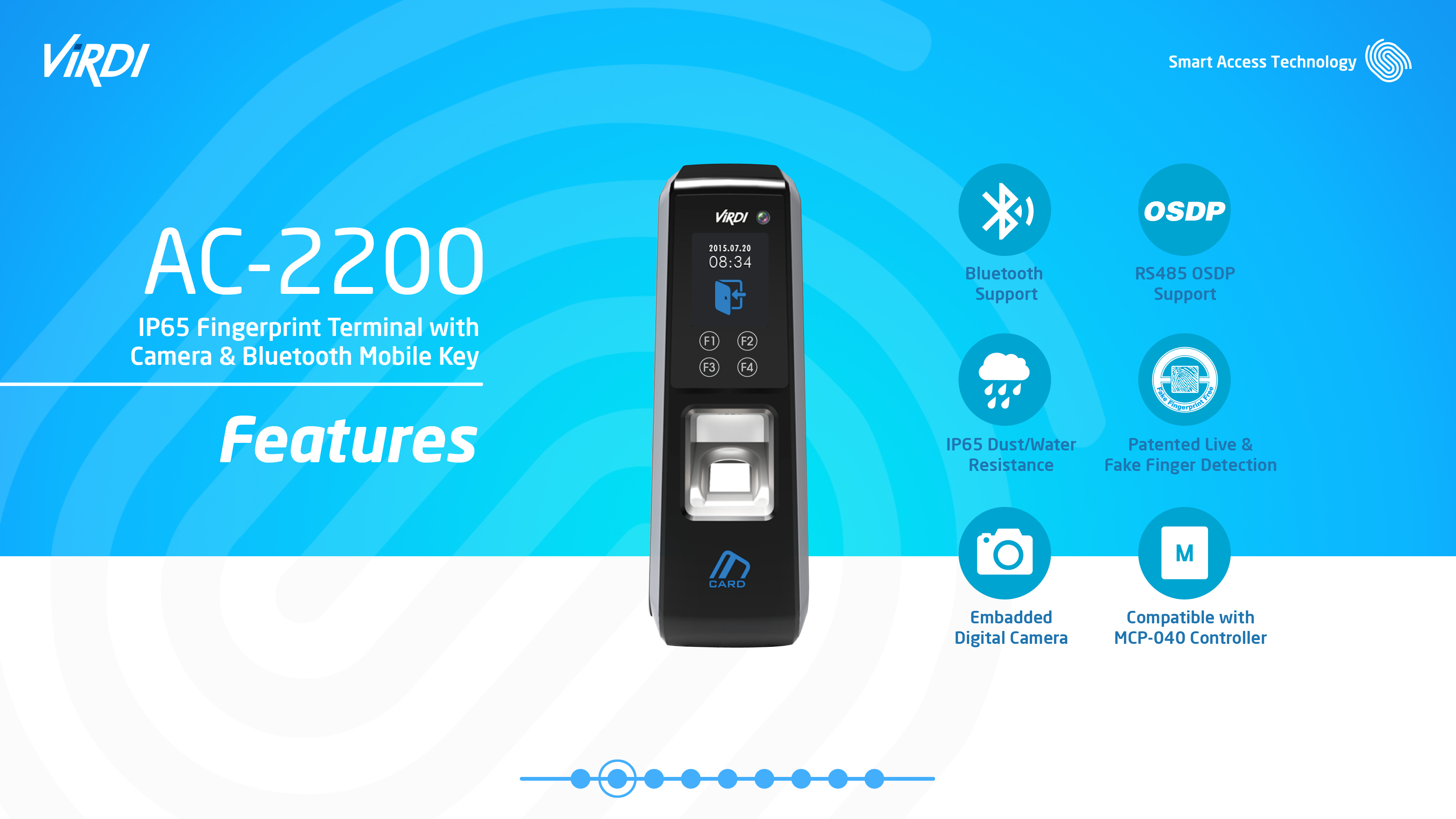

คุณสมบัติ
IP65 Dust & Waterproof
Ingress protected enclosure, keeping out dust moisture ensures faultless operation even under unfavorable conditions. Perfect for outdoor applications.

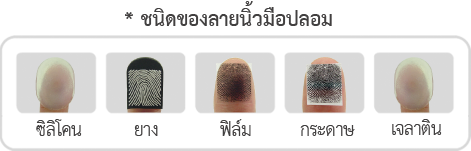

Live Finger Detection Technology
With our Live Finger Detection Technology,
It can distinguish fake fingerprint made from various materials
including gelatin, rubber, silicone, paper and more.
Support Mobile Card System
By Supporting mobile card system, it can be used the access control, T&A management services can be used via smartphone.
Advanced Digital Camera
Equipped with a high definition camera to provide for storing image logs as soon authenticate.
รายละเอียด
| Model Name | AC-2200 | |||
|---|---|---|---|---|
| Authentication Method | Fingerprint/Card | |||
| Dust/Water Resistance | IP65 | |||
| Memory | Max Users | card | (1:1) / (1:N) | 10,000 |
| Fingerprint (Base on one finger enrollment per user) |
1:1 | 10,000 | ||
| 1:N | 5,000 | |||
| Templates | Fingerprint | (1:1) | 20,000 | |
| (1:N) | 10,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Logs | 100,000 | |||
| Images | 10,000 | |||
| Communication | with server | TCP/IP | ||
| Other | Bluetooth/USB | |||
| Wireless LAN(Wi-Fi) | X | |||
| Wiegand OUT | O | |||
| RS232 | X | |||
| RS485 | OSDP | |||
| Wiegand IN | O | |||
| Display | LCD | 1.77″Color LCD | ||
| Backlight | O | |||
| Card | 125khz-EM | O | ||
| HID Prox | X | |||
| HID iclass | X | |||
| 13.56MHz Smart Card | O | |||
| Embedded Camera | O | |||
| Keypad | X | |||
| Function keys | 4 | |||
| Door Phone | X | |||
| FP Sensor (Platen Area) | 14.8 X 17.9mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 58 X 187.9 X 51.6 | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Temperature | -20 ~ 60℃ | |||
| Opertating Software (Server solution) | UNIS | |||
ดาวน์โหลด
-
29
2562.05
โบรชัวร์AC-2200 Brochure EN395 KB -
28
2559.06
คู่มือAC-2200 IG V1.0 EN REV.1.31.47 MB -
18
2559.03
คู่มือAC-2200 UG V1.08 KR EN1.44 MB
