UBio-X Iris
เครื่องสแกนตา & ลายนิ้วมือ
( Advance Iris & Fingerprint Recognition Terminal )
UBio-X Iris is a Contactless Iris Recognition System
The Latest Iris
Authentication Terminal
UBio-X Iris is our brand new access control and time and attendance terminal recognizes iris at a distance up to 50cm, provides fast accurate iris authentication even when user wear glasses or mask, protective clothes, niqab, hijab and more.
คุณสมบัติ

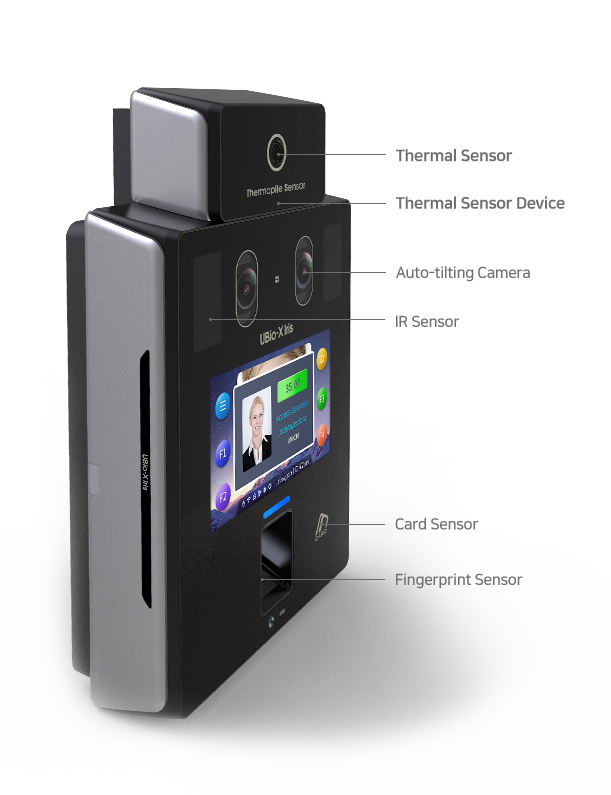

Auto Height Angle Adjustment
Auto-tilting camera detects iris automatically.

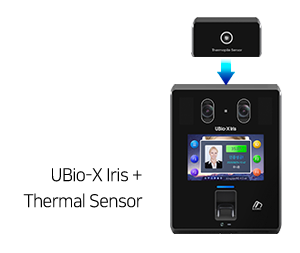

Integration
with Thermal Sensor
UBio-X Iris integrated with a thermal sensor and measures user’s body temperature. In case of fever, the user will be denied to access and the log data recorded on the server.
High Performance
High Performance iris algorithm provide
the fastest matching speed at 40,000 iris templates within 1sec.
Also, Embedded fingerprint sensor has been certified
FBI PIV and Mobile ID specification FAP 20.
It provides high speed and improved security.
Matching Speed
Iris : 40,000 Templates < 1 Sec
Fingerprint : 100,000 Templates < 1 Sec
Various Applications
UBio-X Iris is a perfect iris recognition terminal for visitor management and access control with multi-modal authentication function, supports fingerprint and cards. I can be widely use in various ID verification for a range of applications, such as airport, hospital, construction site and more that require hygiene and convenience.
Commercial facilities
สนามบิน
ไซต์ก่อสร้าง
Medical facilities
โรงพยาบาล

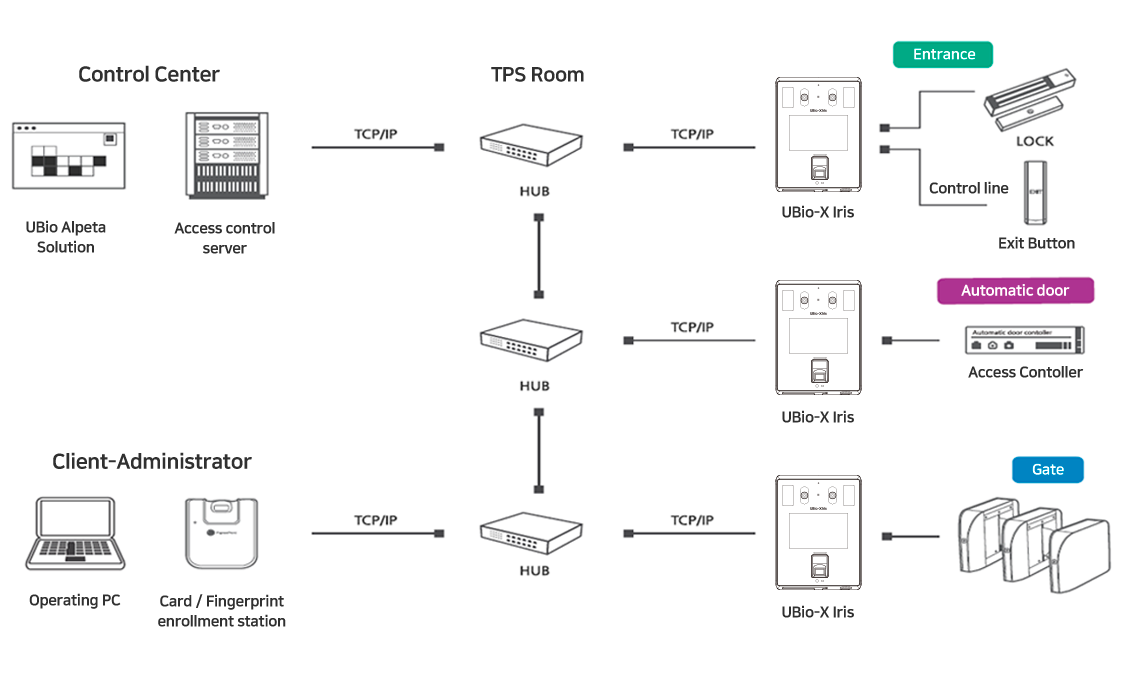

การคอนฟิคระบบ
รายละเอียด
| Model Name | UBio-X Iris | |||
|---|---|---|---|---|
| Authentication Method | Iris/Fingerprint/Card | |||
| Dust/Water Resistance | X | |||
| Memory | Max Users | card | (1:1) / (1:N) | 200,000 |
| Fingerprint (Base on one finger enrollment per user) | 1:1 | 200,000 | ||
| 1:N | 50,000 | |||
| Iris (Base on 2 eyes (L/R) enrollment per user) | 1:1 | 200,000 | ||
| 1:N | 20,000 | |||
| Templates | Fingerprint | (1:1) | 400,000 | |
| (1:N) | 100,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Iris | 1:1 | 400,000 | ||
| 1:N | 40,000 | |||
| MAX Templates per Eyes | 2 | |||
| MAX Templates per User | 4 | |||
| Logs | 10,000,000 | |||
| Images | 20,000 | |||
| Communication | with server | TCP/IP | ||
| Other | USB | |||
| Wireless LAN(Wi-Fi) | Optional | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | O | |||
| Wiegand IN | O | |||
| Display | LCD | 5"Color Touch | ||
| Backlight | O | |||
| Embedded Camera | Dual | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Keypad | Touch Screen | |||
| Function keys | SOFT | |||
| Door Phone | VoIP | |||
| FP Sensor (Platen Area) | Nscan-FM : 16.6 x 21.6mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 160.6 x 214 x 45.4mm | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Illuminance (lux) | X | |||
| Operating Temperature | -20 ~ 60℃ | |||
| Opertating Software (Server solution) | UNIS 4.5, UBio Alpeta | |||
อุปกรณ์เสริม
Thermal-i
Thermal Sensor
ดาวน์โหลด
-
20
2563.07
คู่มือUBio-X Iris IG V1.0 EN1.33 MB -
16
2563.07
โบรชัวร์UBio-X Iris Brochure EN2.05 MB -
18
2563.06
คู่มือUBio-X Iris UG V1.0 EN3.31 MB -
20
2563.05
โบรชัวร์UBio-X Iris Brochure EN3.57 MB -
19
2563.05
โบรชัวร์UBio-X Iris Brochure EN1.82 MB
