UBio-X Pro2
เครื่องสแกนหน้า & ลายนิ้วมือ
( High-End Face & Fingerprint Recognition Terminal )
UBio-X Pro2 is a Contactless Face Recognition System
The Latest Face Authentication Algorithm
with Walk Through Method
UBio-X pro2 is our brand face access control and time and attendance terminal, recognizes face at pro2 at a distance up to 3 meters, authenticates when users walk through the gates.
Features
Integration with Thermal Camera
UBio-X Pro2 integrated with a thermal camera and measures user’s body temperature. In case of fever, the user will be denied for accessing and the log data recorded on the server.
Easy User Registration withMobile Number
If you are not a registered user, simply enter your cell phone number on the first visit and you will be authorized to enter. The first phone number you entered will be used as your ID when you visit later.
Fake Face Detection Technology with its Liveness Detection and Anti-Spoofing Function
UBio-X Pro2 prevents unauthorized users from trying to authenticate with a 3D mask, photo, or cut-out photo.
Easy Face Pre-enrollment, Using Mobile phone or Uploading an Existing Photo
It’s easy enrollment method will allow you to enroll users by simply taking a photo with your mobile phone, and uploading it to the server or if you already have photos of your employees you can enroll their faces by just transferring the photos to your server. it overwrites the previously registered image with the new image on your server when you authenticate from the first time to enhance authentication accuracy.
High Performance
High Performance algorithm provide the fastest matching speed 20,000 face templates within 1sec. High definition camera provides fast accurate face authentication function under the brightest light up to 25,000 lux.
Various Applications
UBio-X Pro2 is a perfect face recognition terminal for visitor management, and access control with multi-modal authentication function, supports fingerprint and cards. It can be widely used in ID verification for a range of applications, including at airports, offices, construction sites, even home security and more.
Commercial facilities
ไซต์งานก่อสร้าง

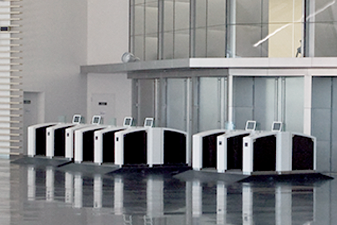

สนามบิน
ศูนย์วิจัยและพัฒนา

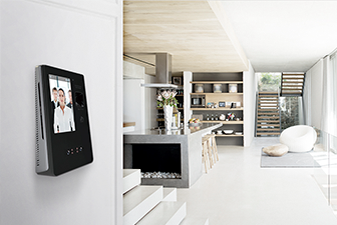

ระบบรักษาความปลอดในบ้านเรือน

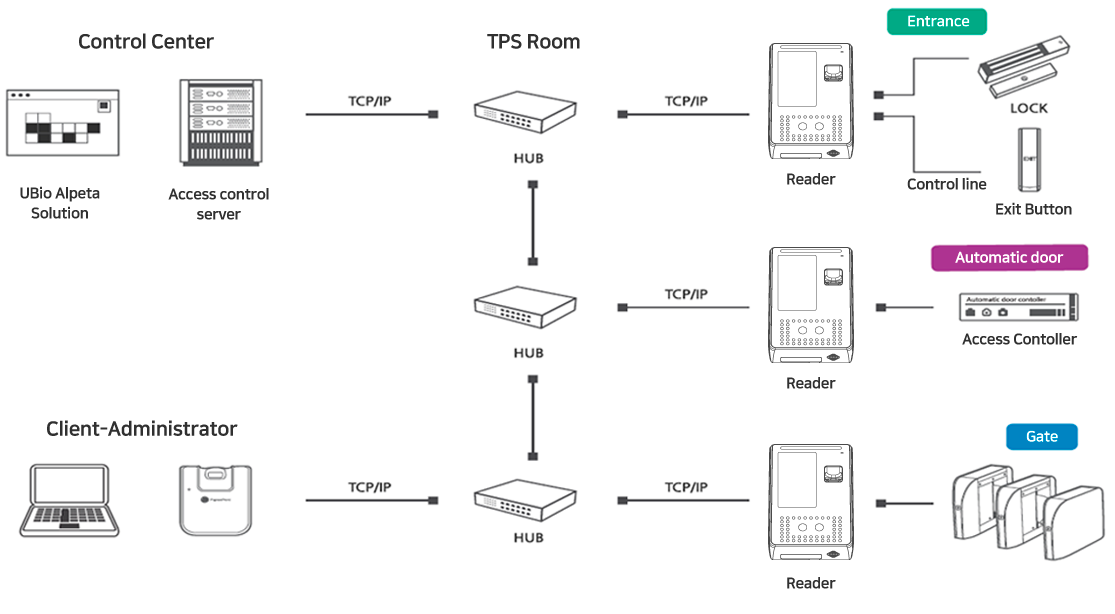

การคอนฟิคระบบ
รายละเอียด
| Model Name | UBio-X Pro2 | |||
|---|---|---|---|---|
| Authentication Method | Face/Fingerprint/Card | |||
| Dust/Water Resistance | X | |||
| Memory | Max Users | card | (1:1) / (1:N) | 500,000 |
| Fingerprint (Base on one finger enrollment per user) | 1:1 | 500,000 | ||
| 1:N | 100,000 | |||
| Face (Base on five Face enrollment per user) | 1:1 | 20,000 | ||
| 1:N | 20,000 | |||
| Templates | Fingerprint | (1:1) | 1,000,000 | |
| (1:N) | 200,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Face | 1:1 | 20,000 | ||
| 1:N | 20,000 | |||
| MAX Templates per Face | 1 | |||
| Logs | 10,000,000 | |||
| Images | 20,000 | |||
| Communication | with server | TCP/IP | ||
| Other | SD Card | |||
| Wireless LAN(Wi-Fi) | Optional | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | O | |||
| Wiegand IN | O | |||
| Display | LCD | 5"Color Touch | ||
| Backlight | O | |||
| Embedded Camera | Dual | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Keypad | Touch Screen | |||
| Function keys | SOFT | |||
| Door Phone | - | |||
| FP Sensor (Platen Area) | 15.5 X 19 mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 149.7 x 208 x 56.4mm | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Illuminance (lux) | X | |||
| Operating Temperature | -20 ~ 60℃ | |||
| Opertating Software (Server solution) | UBio Alpeta | |||
อุปกรณ์เสริม
Thermal-i
Thermal Sensor
Thermal-TI2
Thermal Sensor
ดาวน์โหลด
-
08
2563.12
คู่มือUBio-X Pro2 IG Image Mounting Guide195 KB -
30
2563.10
คู่มือUBio-X Pro2 UG with TC&TS V1.2 EN567 KB -
28
2563.07
คู่มือUBio-X Pro2 IG V1.0 EN1.35 MB -
24
2563.04
โบรชัวร์UBio-X Pro2 Brochure EN107 KB -
23
2563.04
โบรชัวร์UBio-X Pro2 Brochure EN4.32 MB -
17
2563.01
คู่มือUBio-X Pro2 UG V1.0 EN Tech Support3.64 MB
