เครื่องสแกนหน้า-ลายนิ้วมือ

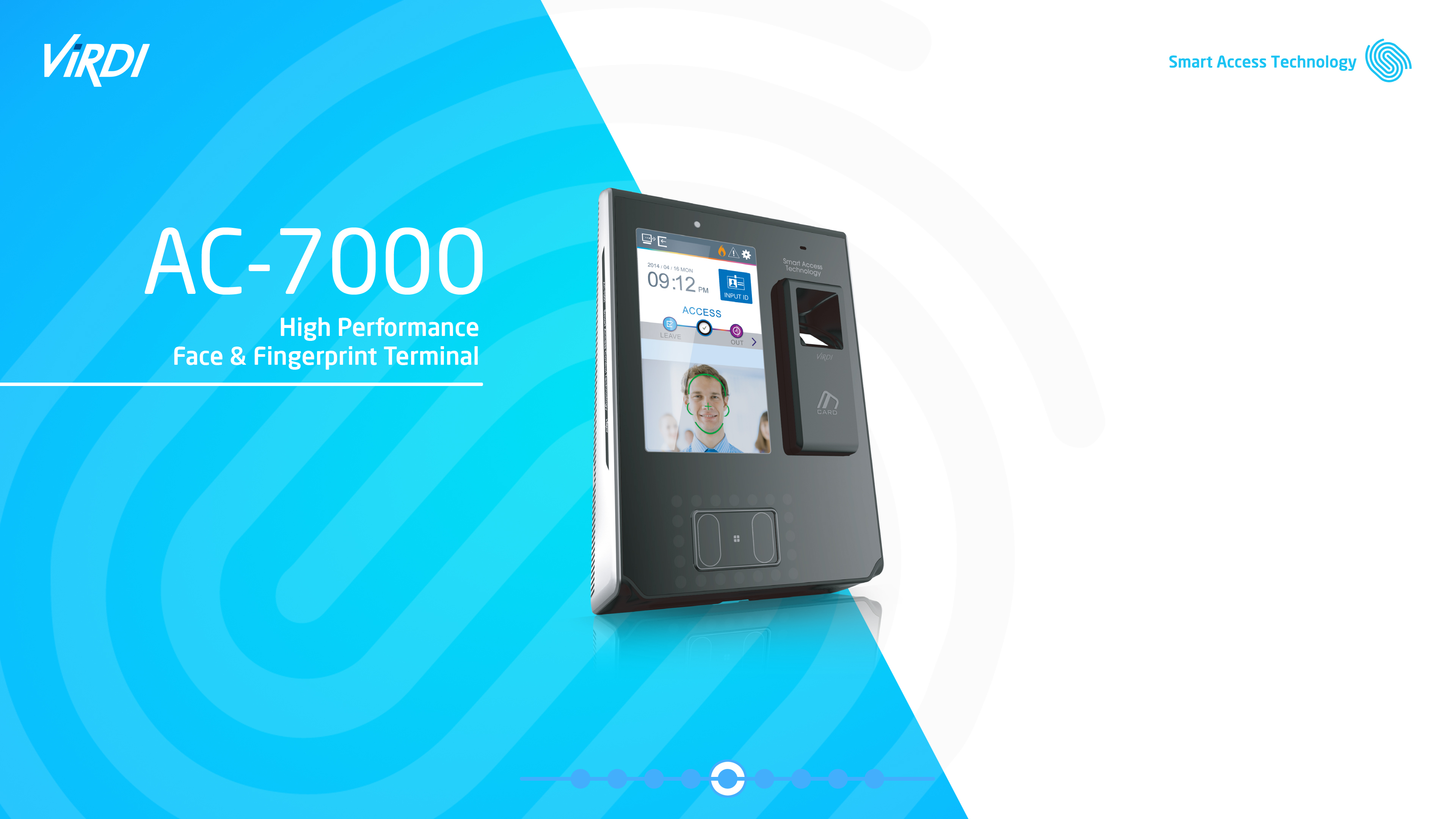

UBio-X Pro

AC-7000

High performance
Face&Fingerprint Recognition Terminal

AC-7000 is a Multimodal face
& fingerprint recognition terminal.

ViRDI AC-7000 ViRDI AC-7000 ViRDI AC-7000 ViRDI AC-7000

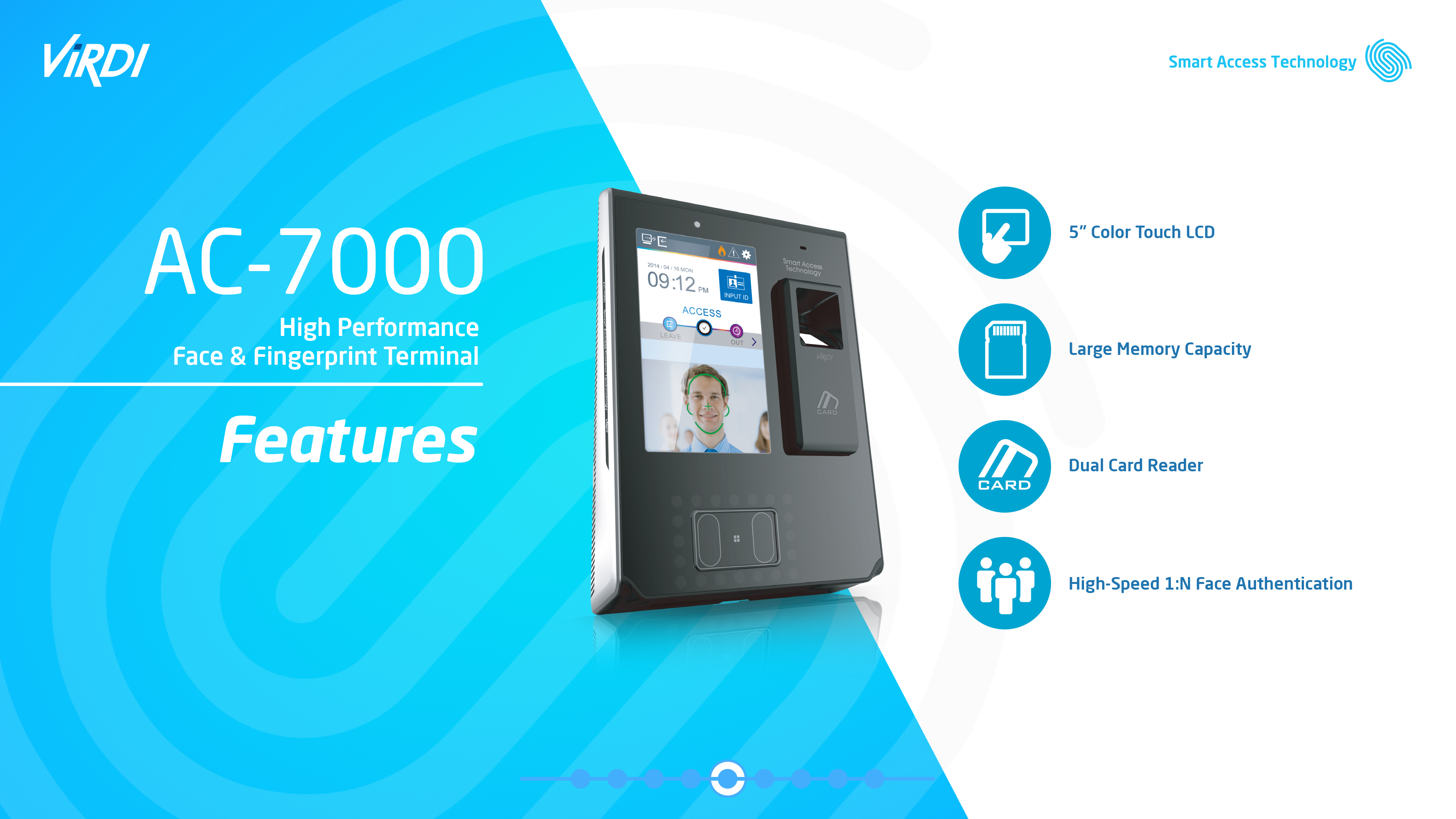

Features

Powerful Performance
Face Recognition Terminal

Equipped with a powerful face authentication algorithm to accurately recognize faces in various lighting conditions. Operating illuminance of up to 20,000 lux conditions. High speed matching 10,000 Face templates within 1sec.

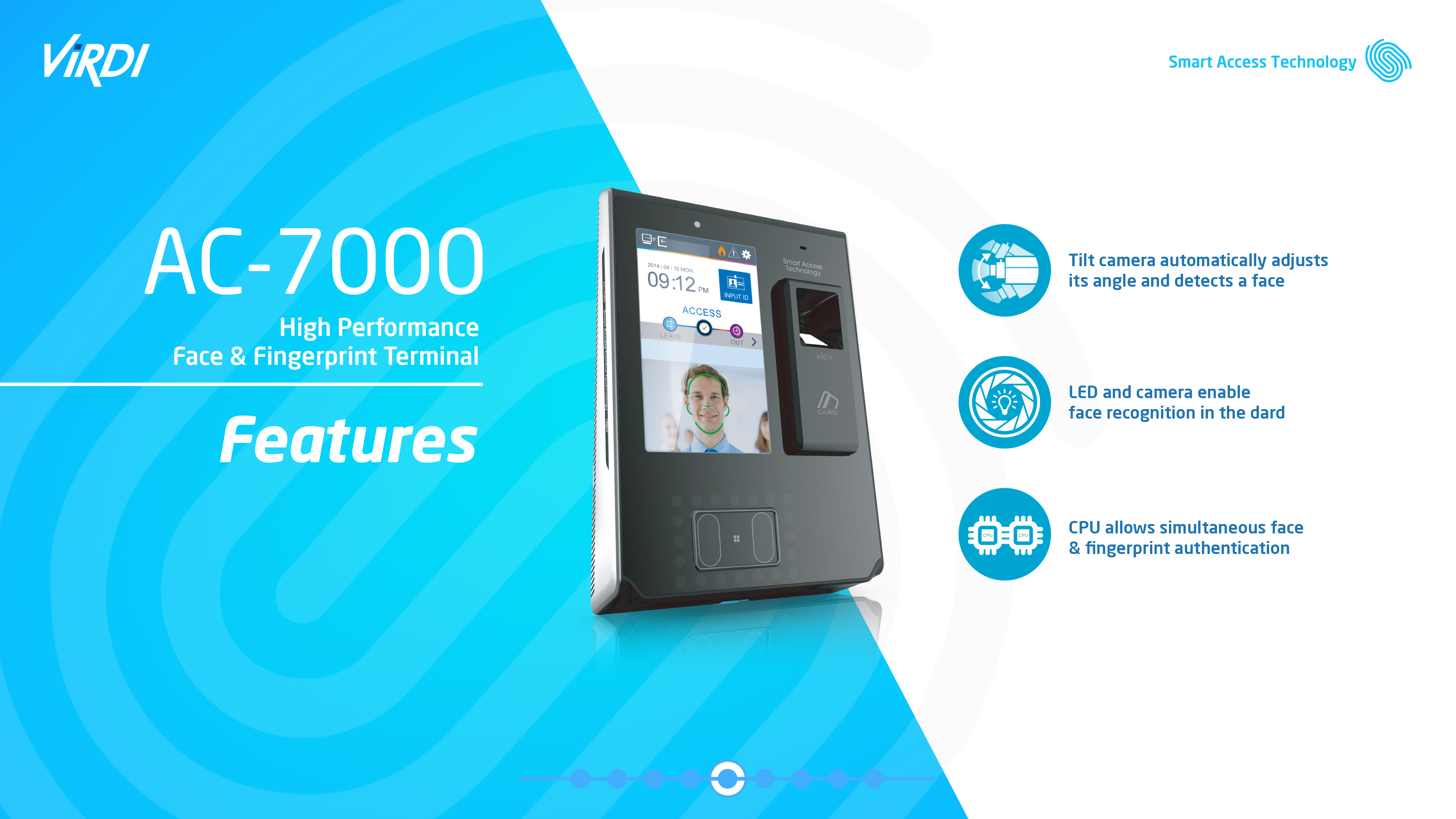

Auto Height Angle Adjustment

A tilt camera offers auto face detection. No need to lower posture or bend the knees.

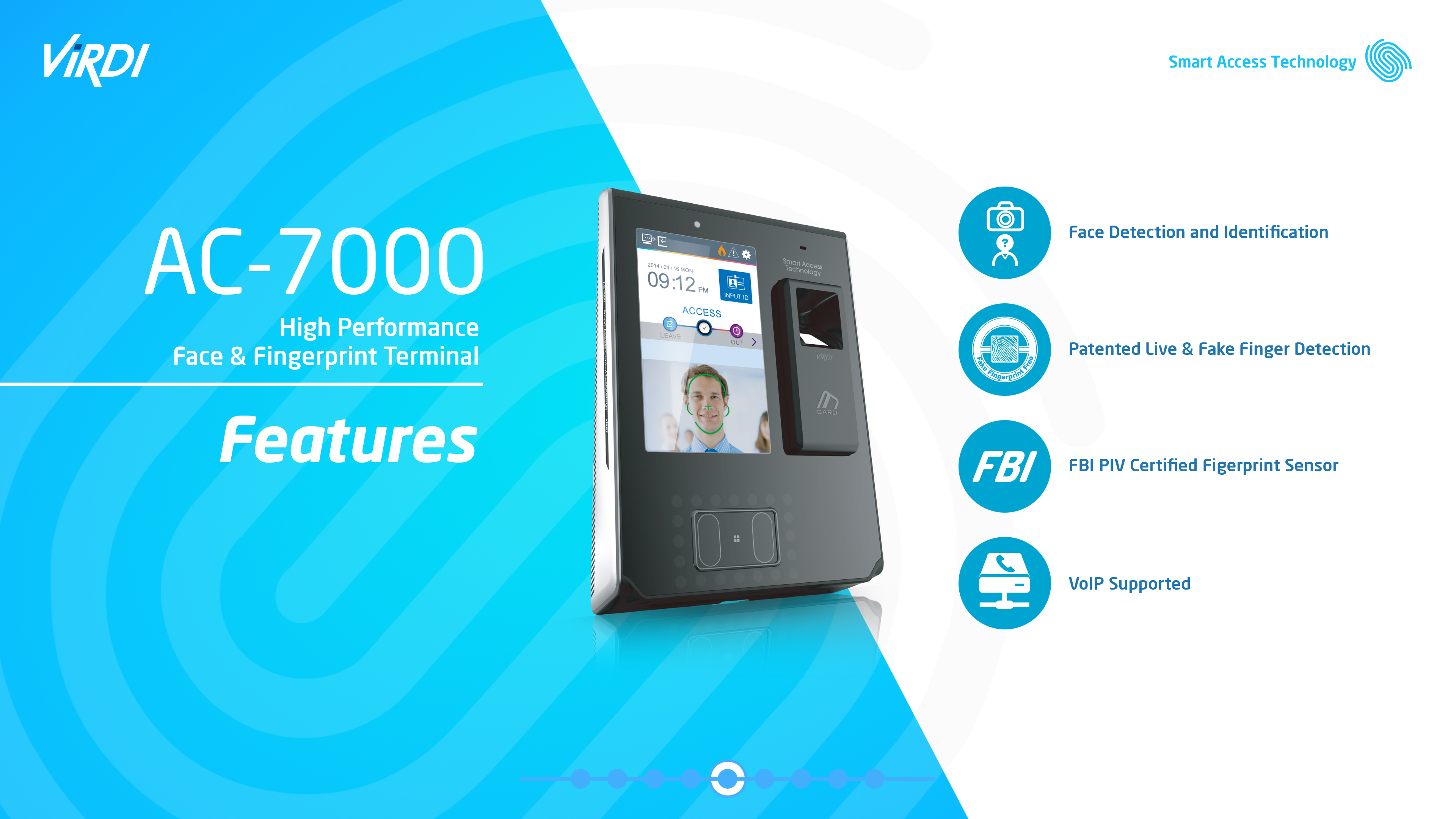

Live Finger Detection Technology

With our Live Finger Detection Technology, It can distinguish fake fingerprint made from various materials including gelatin, rubber, silicone, paper and more.

Enhanced Live Fake Fingerprint Detection

With our Live Finger Detection Technology, It can distinguish fake fingerprint made from various materials including gelatin, rubber, silicone, paper and more.

Specification

Model Name AC-7000
Authentication Method Face/Fingerprint/Card
Dust/Water Resistance X
Memory Max Users card (1:1) / (1:N) 250,000
Fingerprint
(Base on one finger enrollment per user)		 1:1 250,000
1:N 25,000
Face
(Base on five Face enrollment per user)		 1:1 10,000
1:N 2,000
Templates Fingerprint (1:1) 500,000
(1:N) 50,000
MAX Templates per Finger 2
MAX Finger per User 10
Face (1:1) 50,000
(1:N) 10,000
MAX Templates per User 10
Logs 10,000,000
Images 20,000
Communication with server TCP/IP
Other SD Card
Wireless LAN(Wi-Fi) Optional
Wiegand OUT O
RS232 O
RS485 O
Wiegand IN O
Display LCD 5"Color Touch
Backlight O
Card 125khz-EM O
HID Prox O
HID iclass O
13.56MHz Smart Card O
Embedded Camera Dual
Keypad Touch Screen
Function keys SOFT
Door Phone VoIP
FP Sensor (Platen Area) 21 X 21 mm
Resolution 500dpi
Dimension (W) X (H) X (D) mm 149.5 x 208.5 x 46
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
Opertating Software (Server solution) UNIS 4.5, UBio Alpeta
