BioStation 2

Fingerprint IP Access Terminal

คุณสมบัติ
การคอนฟิคระบบ
รายละเอียด
อุปกรณ์เสริม
ดาวน์โหลด
สินค้าใกล้เคียง
วิดีโอ

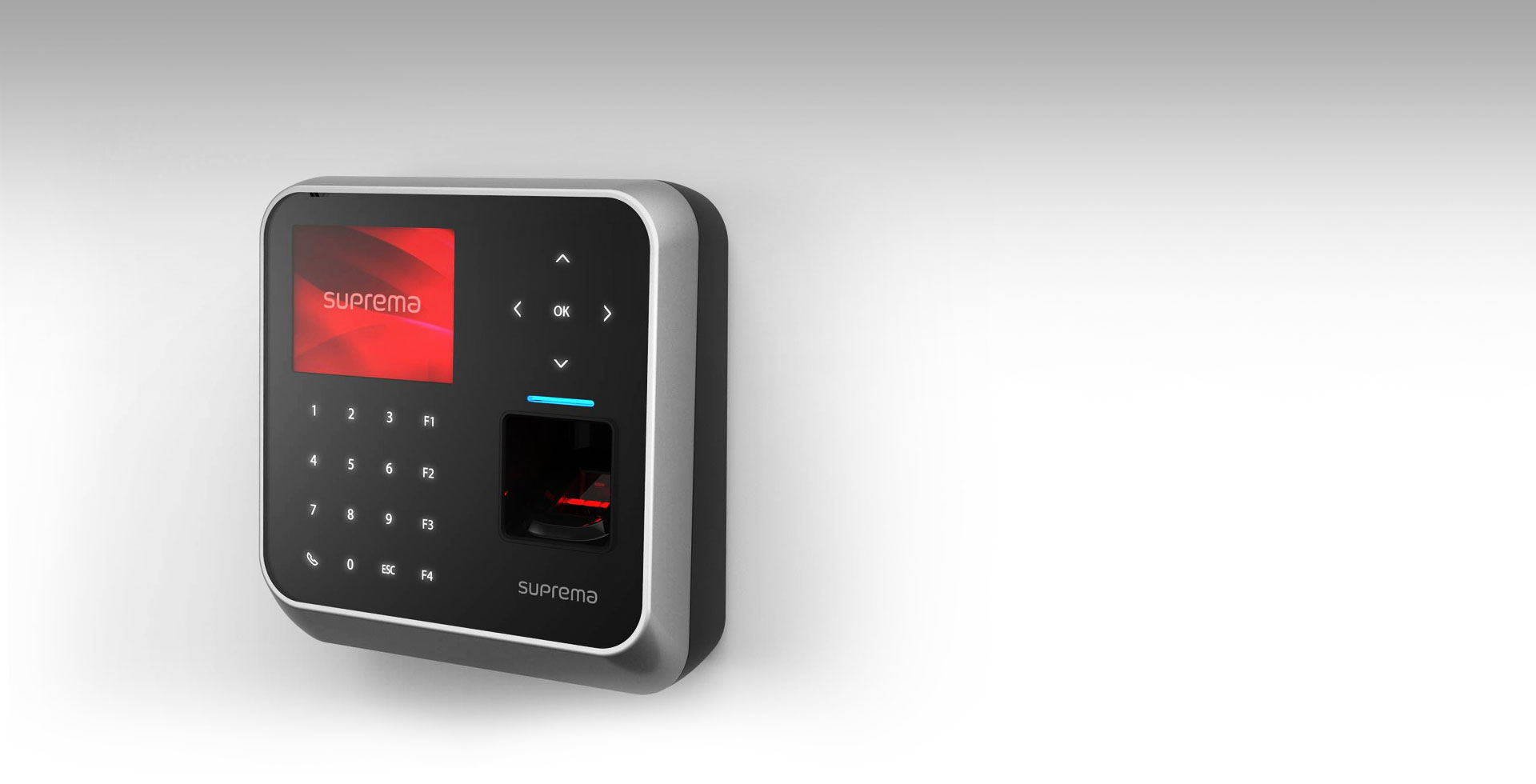

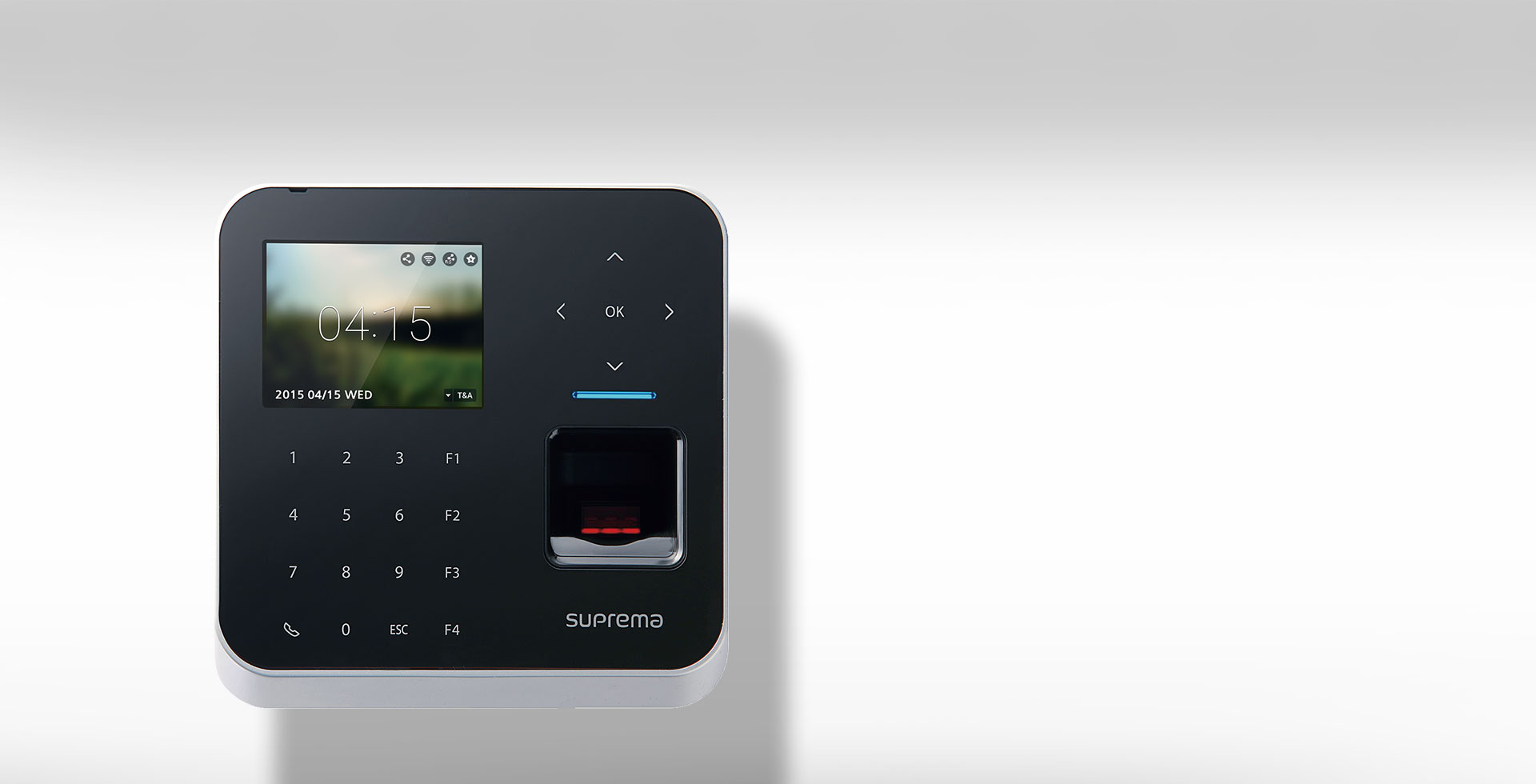

Suprema BioStation 2 incorporates the latest Suprema technology in a beautiful exterior. It combines a new powerful processor, Suprema’s next generation optical sensor and improved fingerprint sensing & capturing algorithm to offer unrivaled performance. BioStation 2 provides users with instant authentication and rapid data transfer to manage high volume data with ease. It is ideal for applications that require versatility without compromise in style and performance.

คุณสมบัติ

Instant Matching & Authentication

BioStation 2 is designed to provide matching & authentication in an instant. Leveraging the powerful hardware and sophisticated algorithms, the device can match and authenticate up to 20,000 fingerprints per second.

Massive Memory Capacity

BioStation 2 offers a massive memory capacity to handle large number of users. The device can manage up to 1,000,000 fingerprint templates, which translates to 500,000 maximum users that is equivalent to the population of a large metro area such as Miami. Additionally, BioStation 2 can hold up to 3,000,000 logs for backup in case of a connection loss to server in order to safely guard all records.

Rapid Data Transfer

BioStation 2 features Rapid Data Transfer that drastically improves the transfer speed of user and log data. The device can send user data that includes large biometric data at a rate of 5,000 users per min.

Next Generation Optical Sensor

The new sensor in BioStation 2 enables the device to capture and process much clearer fingeprint images under less-than-ideal conditions.
The new sensor offers excellent wet and dry fingeprint capture performance that allows the device to be used even in harsh environments.

IP65 Weather Proof

BioStation 2 features an IP65 certified weather proof exterior. IP65 protection allows system designers to place the terminal in both indoor and outdoor environments.

Versatile Interface

BioStation 2 features standard TCP/IP and RS485 interfaces for main communication between devices and the server. It also supports USB and Wiegand interfaces to provide maximum versatility. BioStation 2 features built-in WiFi and Power-over-Ethernet for flexible installation options.

การคอนฟิคระบบ

รายละเอียด

Model Name		BS2-OMPW	BS2-OEPW	BS2-OIPW	BS2-OHPW
Credential	RF Option	13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2¹⁾, Felica	125KHz	13.56MHz iCLASS SE/SR/Seos	125KHz Prox
Credential	Mobile Card	NFC	Not supported	NFC	Not supported
Protections	Ingress Protection	IP65	IP65	IP65	IP65
Protections	Vandal Proof	Not supported	Not supported	Not supported	Not supported
Fingerprint	Template	SUPREMA / ISO19794-2, ANSI-378	SUPREMA / ISO19794-2, ANSI-378	SUPREMA / ISO19794-2, ANSI-378	SUPREMA / ISO19794-2, ANSI-378
	Extractor / Matcher	MINEX certified and compliant	MINEX certified and compliant	MINEX certified and compliant	MINEX certified and compliant
	Live Fingerprint Detection	Not supported	Not supported	Not supported	Not supported
Capacity	Max. User	500,000	500,000	500,000	500,000
	Max. Credential (1:N)	Fingerprint: 20,000	Fingerprint: 20,000	Fingerprint: 20,000	Fingerprint: 20,000
	Max. Credential (1:1)	Fingerprint: 500,000 Card: 500,000 PIN: 500,000	Fingerprint: 500,000 Card: 500,000 PIN: 500,000	Fingerprint: 500,000 Card: 500,000 PIN: 500,000	Fingerprint: 500,000 Card: 500,000 PIN: 500,000
	Max. Text Log	3,000,000	3,000,000	3,000,000	3,000,000
	Max. Image Log	Not supported	Not supported	Not supported	Not supported
General	CPU	1.0 GHz Single Core	1.0 GHz Single Core	1.0 GHz Single Core	1.0 GHz Single Core
	Memory	8GB Flash + 256MB RAM	8GB Flash + 256MB RAM	8GB Flash + 256MB RAM	8GB Flash + 256MB RAM
	Cripto Chip	Supported	Supported	Supported	Supported
	LCD Type	2.8" color TFT LCD	2.8" color TFT LCD	2.8" color TFT LCD	2.8" color TFT LCD
	LED	Multiple colors	Multiple colors	Multiple colors	Multiple colors
	Sound	16-bit	16-bit	16-bit	16-bit
	Operating Temperature	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)
	Storage Temperature	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)
	Operating Humidity	0%-80%, non-condensing	0%-80%, non-condensing	0%-80%, non-condensing	0%-80%, non-condensing
	Storage Humidity	0%-90%, non-condensing	0%-90%, non-condensing	0%-90%, non-condensing	0%-90%, non-condensing
	Weight	Device: 440g Bracket: 130g (Including Washer and skew)	Device: 440g Bracket: 130g (Including Washer and skew)	Device: 440g Bracket: 130g (Including Washer and skew)	Device: 440g Bracket: 130g (Including Washer and skew)
	Dimension (WxDxH, mm)	142x144x45	142x144x45	142x144x45	142x144x45
	Temper	Supported	Supported	Supported	Supported
Interface	Wi-Fi	Built-in, IEEE 802.11 b/g	Built-in, IEEE 802.11 b/g	Built-in, IEEE 802.11 b/g	Built-in, IEEE 802.11 b/g
	Ethernet	10/100/1000 Mbps, auto MDIX	10/100/1000 Mbps, auto MDIX	10/100/1000 Mbps, auto MDIX	10/100/1000 Mbps, auto MDIX
	RS-485	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)
	Wiegand	1ch Input, 1ch Output	1ch Input, 1ch Output	1ch Input, 1ch Output	1ch Input, 1ch Output
	TTL Input	2ch Inputs, 2ch Outputs	2ch Inputs, 2ch Outputs	2ch Inputs, 2ch Outputs	2ch Inputs, 2ch Outputs
	Relay	1 Relay	1 Relay	1 Relay	1 Relay
	USB	USB 2.0 (Host)	USB 2.0 (Host)	USB 2.0 (Host)	USB 2.0 (Host)
	SD Card	Not supported	Not supported	Not supported	Not supported
	PoE	IEEE 802.3af compliant	IEEE 802.3af compliant	IEEE 802.3af compliant	IEEE 802.3af compliant
	Intercom	Supported	Supported	Supported	Supported
Electrical	Power	DC 12V	DC 12V	DC 12V	DC 12V

¹⁾DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation 2.
