BioLite N2
Outdoor IP Fingerprint Terminal
BioLite N2
Outdoor IP Fingerprint Terminal
Suprema BioLite N2 is a Suprema’s 2nd generation outdoor fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema's latest biometric technology and security platform. BioLite N2 provides class-leading performance and security by featuring Suprema's latest fingerprint algorithm coupled with world's best fingerprint sensor. Packed in a rugged IP67 housing, BioLite N2 added flexibility in system design with multi-class RFID reading technology.
คุณสมบัติ
Faster Fingerprint Matching Speed
BioLite N2 features a class-leading 1.2GHz CPU that enhances user experience by offering precise control of locking devices, and quick response for users.
IP67, Dust & Water Proof
BioLite N2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, BioLite N2 is the ideal choice for outdoor applications.
Communicates with Smartphones
With Suprema Mobile Access, as a credential, your smartphone is a key to access.
- BLE (Bluetooth Low Energy)
- Communicates via BLE in Android
- Protecting data communications using the AES encryption algorithm
- NFC (Near Field Communication)
- Communicates via NFC’s HCE in Android
* Note that HCE is not available on all Android smartphones. It is recommended to check the smartphone specification, but this feature is widely supported on the latest models. - Protecting data communications using the AES encryption algorithm
- BLE (Bluetooth Low Energy)
- Communicates via BLE in iOS
- Protecting data communications using the AES encryption algorithm
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID technology, BioLite N2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID standards that HID multi CLASS readers support. On top of fingerprint credential, BioLite N2 supports most types of RFID card standards with a single device including 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR, NFC and 2.4GHz BLE
Versatile Interfaces
BioLite N2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.

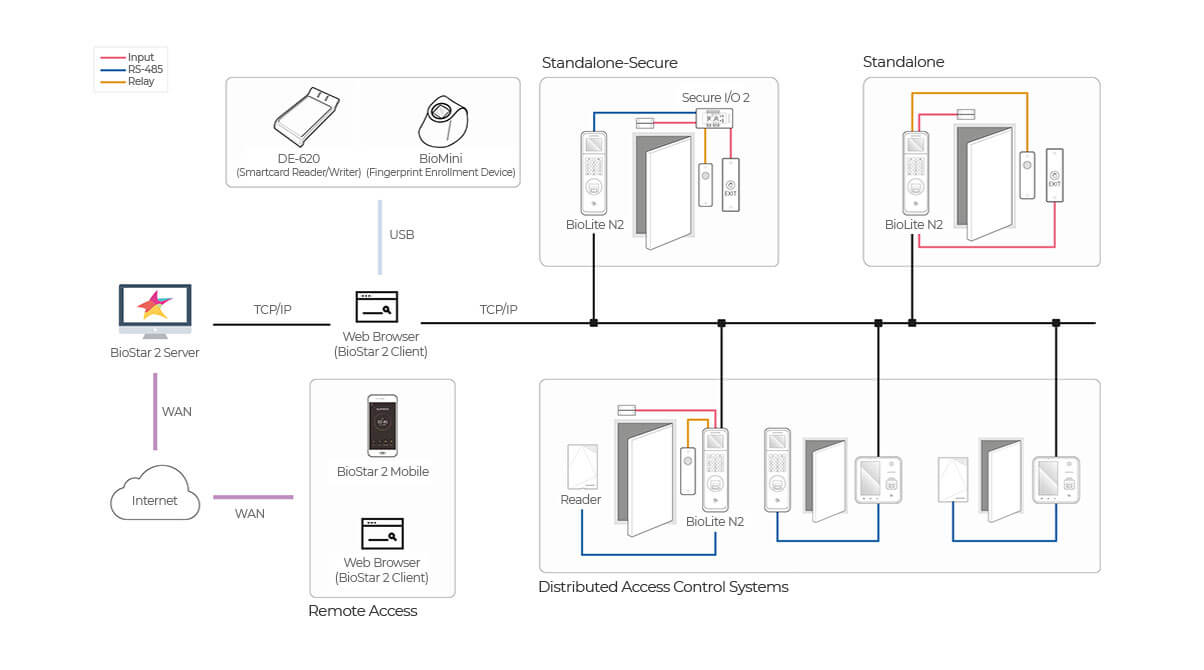

การคอนฟิคระบบ
รายละเอียด
| Model Name | BLN2-ODB | BLN2-OAB | BLN2-PAB | |
|---|---|---|---|---|
| Credential | RF Option | 125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV31), Felica |
125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV31), Felica, iCLASS SE/SR/Seos |
125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV31), Felica, iCLASS SE/SR/Seos |
| Mobile Card | NFC, BLE | NFC, BLE | NFC, BLE | |
| Protections | Ingress Protection | IP65, IP67 | IP65, IP67 | IP65, IP67 |
| Vandal Proof | Not supported | Not supported | Not supported | |
| Fingerprint | Template | SUPREMA / ISO 19794-2 / ANSI 378 | SUPREMA / ISO 19794-2 / ANSI 378 | SUPREMA / ISO 19794-2 / ANSI 378 |
| Extractor / Matcher | MINEX certified and compliant | MINEX certified and compliant | MINEX certified and compliant | |
| Live Fingerprint Detection | Not supported | Not supported | Not supported | |
| Capacity | Max. User | 10,000 | 10,000 | 10,000 |
| Max. Credential (1:N) | 10,000 | 10,000 | 10,000 | |
| Max. Credential (1:1) | 10,000 | 10,000 | 10,000 | |
| Max. Text Log | 1,000,000 | 1,000,000 | 1,000,000 | |
| Max. Image Log | Not supported | Not supported | Not supported | |
| General | CPU | 1.2GHz | 1.2GHz | 1.2GHz |
| Memory | 4GB Flash + 64MB RAM | 4GB Flash + 64MB RAM | 4GB Flash + 64MB RAM | |
| Cripto Chip | Supported | Supported | Supported | |
| LCD Type | 1.77" color TFT LCD | 1.77" color TFT LCD | 1.77" color TFT LCD | |
| LED | Not supported | Not supported | Not supported | |
| Sound | 16-bit | 16-bit | 16-bit | |
| Operating Temperature | -20℃ ~ 50℃ (-4°F ~ 122°F) | -20℃ ~ 50℃ (-4°F ~ 122°F) | -20℃ ~ 50℃ (-4°F ~ 122°F) | |
| Storage Temperature | -40℃ ~ 70℃ (-40°F ~ 158°F) | -40℃ ~ 70℃ (-40°F ~ 158°F) | -40℃ ~ 70℃ (-40°F ~ 158°F) | |
| Operating Humidity | 0% ~ 80%, non-condensing | 0% ~ 80%, non-condensing | 0% ~ 80%, non-condensing | |
| Storage Humidity | 0% ~ 90%, non-condensing | 0% ~ 90%, non-condensing | 0% ~ 90%, non-condensing | |
| Weight | Device: 255g Bracket: 57g (Including Washer and bolt) |
Device: 255g Bracket: 57g (Including Washer and bolt) |
Device: 255g Bracket: 57g (Including Washer and bolt) |
|
| Dimension (WxDxH, mm) | 58 x 190 x 44 (Bootom) / 34 (Top) | 58 x 190 x 44 (Bootom) / 34 (Top) | 58 x 190 x 44 (Bootom) / 34 (Top) | |
| Temper | Supported | Supported | Supported | |
| Interface | Wi-Fi | Not supportes | Not supportes | Not supportes |
| Ethernet | 10/100/1000 Mbps, auto MDI/MDI-X | 10/100/1000 Mbps, auto MDI/MDI-X | 10/100/1000 Mbps, auto MDI/MDI-X | |
| RS-485 | 1ch Host or Slave (Selectable) | 1ch Host or Slave (Selectable) | 1ch Host or Slave (Selectable) | |
| Wiegand | 1ch Input / Output (Selectable) | 1ch Input / Output (Selectable) | 1ch Input / Output (Selectable) | |
| TTL Input | 2ch Inputs | 2ch Inputs | 2ch Inputs | |
| Relay | 1 Relay | 1 Relay | 1 Relay | |
| USB | Not supported | Not supported | Not supported | |
| SD Card | Not supported | Not supported | Not supported | |
| PoE | Not supported | Not supported | Not supported | |
| Intercom | Not supported | Not supported | Not supported | |
| Electrical | Power | DC 12V | DC 12V | DC 12V |
1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioLite N2.
อุปกรณ์เสริม
Secure Module
Compact Secure Single Door I/O Module
Output Module
Multiple Output Extension Module
Door Module
Secure Multi Door I/O Module
ดาวน์โหลด
-
03
2565.08
คู่มือBioLite N2 UG V1.12 EN2.18 MB -
03
2565.08
คู่มือBioLite N2 IG V1.10 EN2.75 MB -
19
2561.11
คู่มือBioLite N2 Drilling Template EN413 KB -
19
2561.11
โบรชัวร์BioLite N2 Brochure EN3.32 MB
