Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.

คุณสมบัติ

World’s Fastest Outdoor Fingerprint Device

BioEntry W2 features a class-leading 1.2GHz Quad-core CPU that enhances user experience by offering World’s best matching speed, precise control of locking devices, and quick response for users.

IK09 Vandal-proof Structure

The BioEntry W2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the BioEntry W2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IP67 ingress protection, BioEntry W2 is a perfect solution for outdoor applications.

IP67, Dust & Water Proof

BioEntry W2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, BioEntry W2 is the ideal choice for outdoor applications.

Dual Frequency, Multi-Smartcard Reader

Featuring dual-frequency RFID technology, BioEntry W2 supports both LF(125Khz) and HF(13.56MHz) RFID including all RFID standards that HID multiCLASS readers support. On top of fingerprint credential, BioEntry W2 supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, FeliCa, HID Prox, EM and NFC.

Live Finger Detection Technology

BioEntry W2 features new Live Finger Detection technology from Suprema. The previous live detection technology analyzes the dynamically changing pattern, liveness feature and unnaturalness feature of live and new fingers. Along with improvements to the existing algorithm, the new detection technology implements liveness decision engine using dual light source imaging. Using infra-red and white light, the engine blocks fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and so on.

Power over Ethernet

BioEntry W2 supports a seamless power sourcing over Ethernet cable(CAT5/6) without any degrading network performance and reach. Suprema’s PoE featured devices compliance to IEEE802.3af standard, to provide users with lower installation cost, simpler cabling and lower maintenance cost.

Versatile Interfaces

BioEntry W2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.

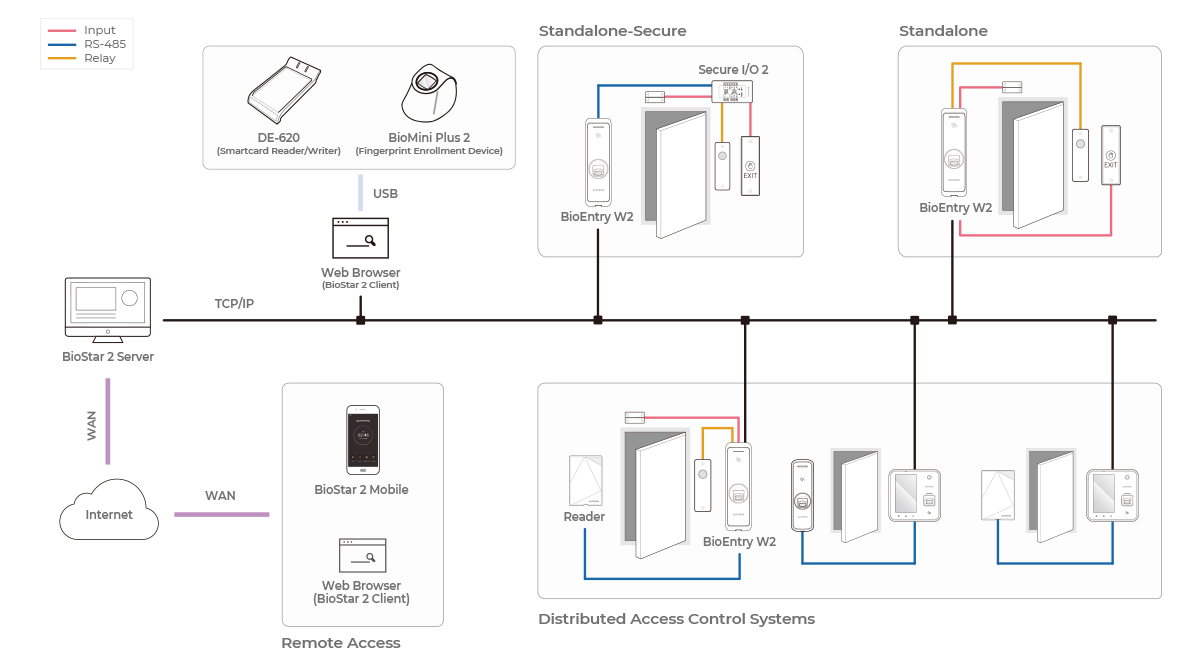

การคอนฟิคระบบ

รายละเอียด

Model Name		BEW2-ODPB	BEW2-OAPB	BEW2-OHPB
Credential	RF Option	125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3¹⁾, Felica	125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3¹⁾, Felica, iCLASS SE/SR/Seos	125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3¹⁾, Felica
Credential	Mobile Card	NFC, BLE	NFC, BLE	NFC, BLE
Protections	Ingress Protection	IP67	IP67	IP67
Protections	Vandal Proof	IK09	IK09	IK09
Fingerprint	Template	SUPREMA / ISO 19794-2 / ANSI 378	SUPREMA / ISO 19794-2 / ANSI 378	SUPREMA / ISO 19794-2 / ANSI 378
	Extractor / Matcher	MINEX certified and compliant	MINEX certified and compliant	MINEX certified and compliant
	Live Fingerprint Detection	Supported	Supported	Supported
Capacity	Max. User	500,000	500,000	500,000
	Max. Credential (1:N)	Fingerprint:100,000	Fingerprint:100,000	Fingerprint:100,000
	Max. Credential (1:1)	Fingerprint:500,000 Card:500,000	Fingerprint:500,000 Card:500,000	Fingerprint:500,000 Card:500,000
	Max. Text Log	1,000,000	1,000,000	1,000,000
	Max. Image Log	Not supported	Not supported	Not supported
General	CPU	1.2GHz Quad Core	1.2GHz Quad Core	1.2GHz Quad Core
	Memory	2GB Flash + 256MB RAM	2GB Flash + 256MB RAM	2GB Flash + 256MB RAM
	Cripto Chip	Supported	Supported	Supported
	LCD Type	Not supported	Not supported	Not supported
	LED	Multiple colors	Multiple colors	Multiple colors
	Sound	Multi-tone Buzzer	Multi-tone Buzzer	Multi-tone Buzzer
	Operating Temperature	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)
	Storage Temperature	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)
	Operating Humidity	0% ~ 80%, non-condensing	0% ~ 80%, non-condensing	0% ~ 80%, non-condensing
	Storage Humidity	0% ~ 90%, non-condensing	0% ~ 90%, non-condensing	0% ~ 90%, non-condensing
	Weight	Device: 251g Bracket: 43g (Including Washer and bolt)	Device: 251g Bracket: 43g (Including Washer and bolt)	Device: 251g Bracket: 43g (Including Washer and bolt)
	Dimension (WxDxH, mm)	50 x 172 x 43.5 (Bootom) / 38.2 (Top)	50 x 172 x 43.5 (Bootom) / 38.2 (Top)	50 x 172 x 43.5 (Bootom) / 38.2 (Top)
	Temper	Supported	Supported	Supported
Interface	Wi-Fi	Not supportes	Not supportes	Not supportes
	Ethernet	10/100/1000 Mbps, auto MDI/MDI-X	10/100/1000 Mbps, auto MDI/MDI-X	10/100/1000 Mbps, auto MDI/MDI-X
	RS-485	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)
	Wiegand	1ch Input / Output (Selectable)	1ch Input / Output (Selectable)	1ch Input / Output (Selectable)
	TTL Input	2ch Inputs	2ch Inputs	2ch Inputs
	Relay	1 Relay	1 Relay	1 Relay
	USB	Not supported	Not supported	Not supported
	SD Card	Not supported	Not supported	Not supported
	PoE	IEEE 802.3af compliant	IEEE 802.3af compliant	IEEE 802.3af compliant
	Intercom	Not supported	Not supported	Not supported
Electrical	Power	DC 12V	DC 12V	DC 12V

¹⁾DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioEntry W2.

* BEW2-ODP, BEW2-OAP, BEW2-OHP do not support BLE.
